New Kiln

1 Rods must be stainless Steel	2	3 Here I am welding the frame together.	4 Main body and door	5 Fitting the galvanized mesh	6 Asbestos sheet with fire bricks for the base
7 Maggie ever hopeful	8 This is how the fiber is fitted	9 Fibre fitted and showing outer cover of Aluminium foil	10 My plumbing	11 Flue beeing fitted to firebrick base	12 Base of the flue

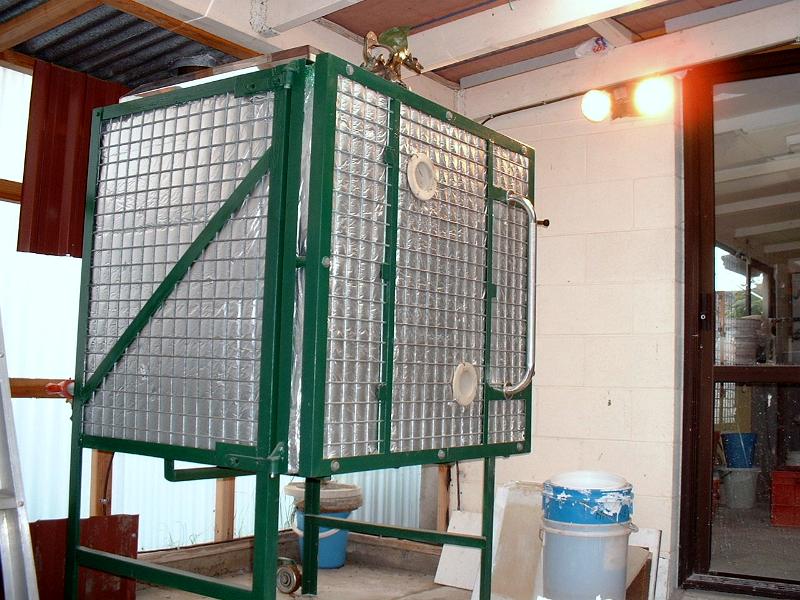

13 Left hand Bung to feed air into flue	14 Notice the angled flame deflector blocks	15 Vent to the flue lower middle of back wall	16 Door hinge -- farm gate lift off hinge	17 Base reinforcing	18 The kiln almost ready to fire up
19 Just the bungs to make	20 Bungs in and we will be set to launch	21 The first load	22 A copper red firing	23 Very happy with the firing	24 Maggie happy with the results
